Sand washing is the last process of the sand production line, and the mechanism sand is cleaned by the sand washing machine, the quality is better and cleaner, so the choice of sand washing machine is also particularly important. The common sand washing machines on the market are spiral sand washing machine and wheel sand washing machine. So, what is the difference between these two types of equipment?
Spiral sand washer and wheeled sand washer are common sand washing equipment, the main differences between the two are as follows:
01, Different composition structure
The composition structure of the spiral sand washing machine mainly includes the following parts:
(1) Spiral shaft: the spiral blade is fixed on the spiral shaft, and the spiral shaft will drive the spiral blade to rotate.
(2) Spiral blade: the spiral blade is located on the spiral shaft to clean and screen the sand and gravel materials through rotation.
(3）Screen: it is used to isolate the debris in the gravel material, so that the clean gravel material can pass through.
(4) Driving device: drive the screw shaft to rotate and drive the screw blade to clean and screen.

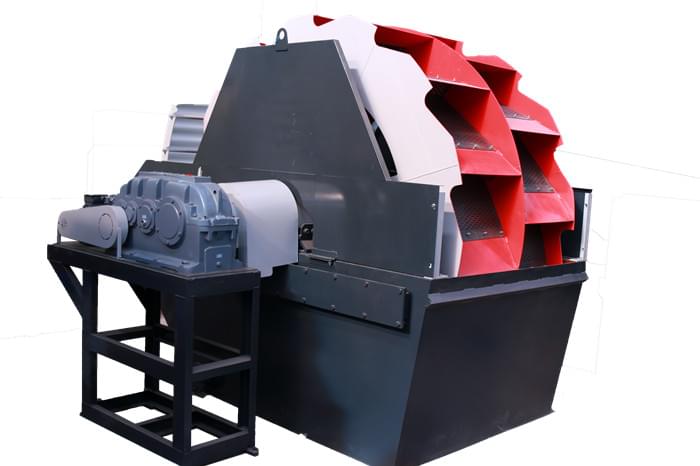

The composition of wheeled sand washing machine mainly includes the following parts:
(1) Driving device: drive the wheel barrel to rotate and drive the sand and gravel material to rotate.
(2) Wheel barrel: equipped with blades to clean the gravel material through the action of rotation and liquid to achieve the effect of cleaning and screening.
(3）Reducer:reduces the rotating speed of the driving wheel barrel to meet the production needs.
(4）Spraying pipe: Spraying water and cleaning agent into the wheel barrel to assist cleaning and screening.
02, Different application occasions
Spiral sand washer is suitable for dealing with sand and gravel materials with high mud content, strong viscosity or varying particle size. Compared with other sand washing equipment, spiral sand washer has simple structure, stable operation, and can effectively solve the problems of sand and gravel materials with high viscosity, high mud content, and at the same time, it has the advantages of high efficiency, low energy consumption, and small floor space.
Wheeled sand washer is suitable for dealing with sand and gravel materials containing more fine powder and weak viscosity, such as river sand, sea sand, etc. Compared with other sand washing equipment, wheeled sand washer has the advantages of simple operation, good cleaning effect, wide cleaning range, energy saving and environmental protection. At the same time, it can also achieve continuous operation in the case of unattended, high production efficiency.
03, Different sand washing effect
Spiral sand washer is suitable for dealing with finer particles of sand and gravel materials, through the rotation of the spiral blade and push the role of the sand and gravel materials can be graded and screened.
The washing effect of wheel sand washer is relatively more thorough, and it is suitable for dealing with larger particles of sand and gravel materials. It uses the high-speed rotating disc to generate strong impact and collision force, which can effectively remove the attached material on the surface of sand and gravel materials, and can also achieve the separation and classification of sand and gravel materials.
To sum up, in general, the two have their own characteristics, and the use of different occasions. We suggest that when choosing a sand washing machine, users should make comprehensive consideration according to the specific needs, characteristics of sand and gravel materials, processing range, budget and work efficiency and other factors. Longding Environmental Protection is a professional mining machinery manufacturer with excellent equipment quality and perfect after-sales service, and can tailor-make equipment solutions to meet your specific needs.
