Capacity: 2-110m³/s
Max Feeding size: 315mm
Materials: coal, cement, stone, sand, clay, ore, etc.
Application Scope: suitable for conveying powdery, granular and small lumps of non-abrasive and less abrasive materials, such as coal, cement, stone, sand, clay, ore and so on.

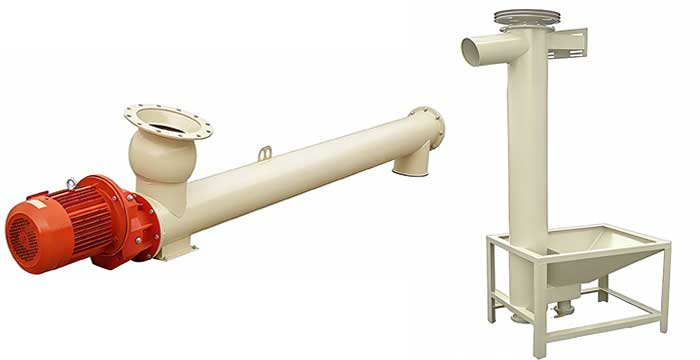

Screw conveyors include horizontal screw conveyors and vertical screw conveyors.
The screw shaft of a vertical screw conveyor rotates at a higher speed than that of a standard screw conveyor. Under centrifugal force, the added material generates friction against the housing. This friction prevents the material from rotating with the screw blades and overcomes the downward gravitational force, thereby enabling vertical material transport. The typical lifting height can reach 20 meters.
Horizontal screw conveyors facilitate multi-point loading and unloading, and can simultaneously perform mixing, stirring, or cooling functions during transport. Their conveying length can reach up to 150 meters.

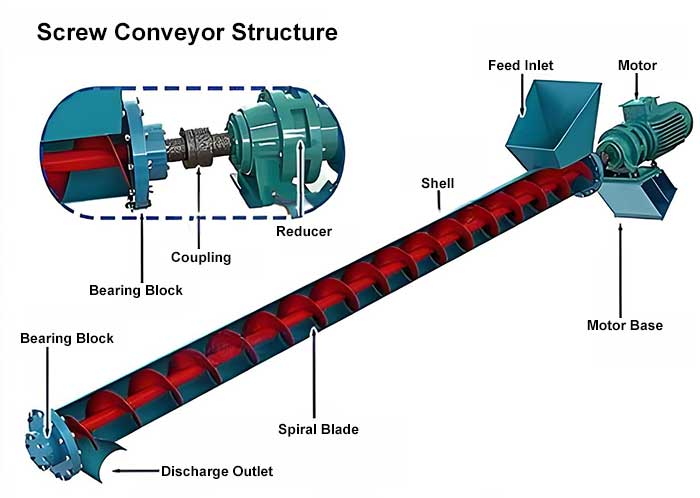

Screw conveyors utilize the rotation of a helical shaft equipped with screw blades to induce relative motion of materials along the spiral surface. The materials resist rotation with the screw due to friction forces exerted by the trough or conveying pipe walls, thereby achieving axial advancement and material transport.
In horizontal screw conveyors, the friction force within the trough is primarily generated by the materials’ own gravitational force. Conversely, in vertical screw conveyors, the friction force against the conveying pipe walls is mainly induced by the centrifugal force resulting from the materials’ rotational motion.
1. Compact size and high rotational speed ensure rapid and uniform material transport.
2. Excellent rigidity and sealing performance. The housing is constructed from seamless steel pipes, with flange connections at both ends forming an integrated structure.
3. Equipped with a cleaning device at the discharge end. Low overall noise levels, strong adaptability, and flexible positioning of inlet/outlet ports.
4. Capable of handling heavy loads with high safety and reliability.
5. Highly adaptable, easy to install and maintain, with extended service life.
| Model | Diameter（mm） | Screw pitch (mm) | Rotate speed (r/min) | Conveying Capacity (m³/s) |
| LS159 | 159 | 100 | 83 | 2-6 |
| LS219 | 219 | 175 | 83 | 5-12 |
| LS250 | 250 | 200 | 90 | 22 |
| LS315 | 315 | 250 | 70 | 36 |
Notice: There is a chance that LDHB may make changes to above-mentioned information. Please feel free to contact us for the latest product information.
