Attrition Cell Scrubbers

Max Feeding Size: 10mm

Production Capacity: 0-80t/h

Material Concentration: 65%-70%

Applications: glass sand, frac sand, mineral sand, clay, iron ore, aggregate ore, coal and other industries.

You can also send us a message and we will reply to you within 24 hours.
Product Details
Product Details

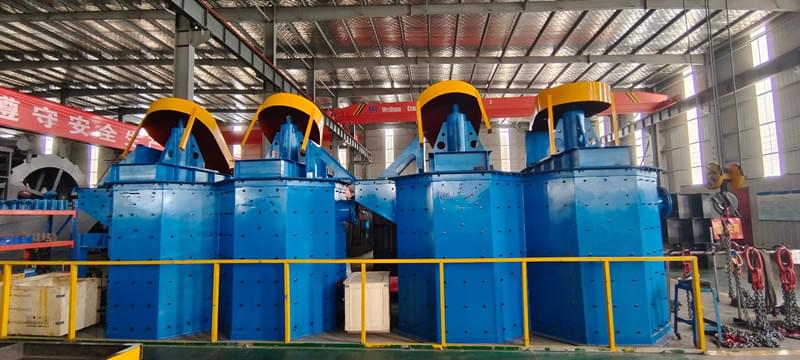

The CX series scrubbing machine is widely used in the production process of high quality silica sand,quartz sand and other materials, and can also be used for the scrubbing of hard ore,aggregate and other materials with high quality requirements.

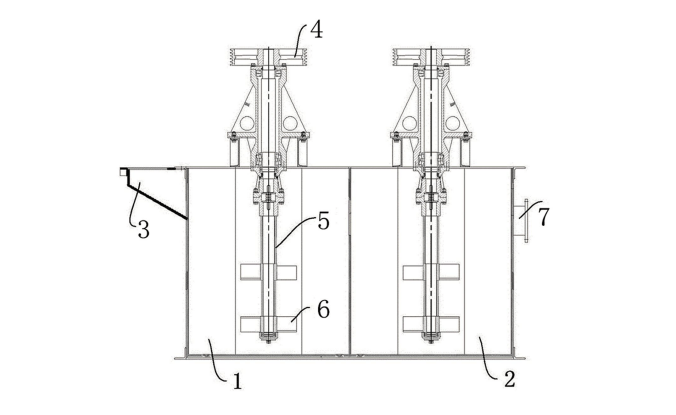

Organization chart:


  • 1.Groove 1
  • 2.Groove 2
  • 3.feed port
  • 4.belt guard
  • 5.bearing body
  • 6.impeller
  • 7.Ore outlet

Product advantages

1.Effective decontamination

The equipment can effectively remove the adhesion layer, oxide layer,loose layer and so on the surface of the material with high scrubbing and stirring intensity,high feed concentration and strong friction force between materials.

2.Simple and durable

The overall structure is simple and reasonable, small floor space,easy to connect with other equipment. The impeller is made of high wear-resistant material with a longer service life and low maintenance cost.

Model Feeding Size (mm) Capacity (t/h) Box Size (m³) Impeller Diameter (mm) Power (kw) Overall Size (mm)
CX1-1 ≤10 10-30 1 480 15 1180*1150*2060
CX1-2 ≤10 10-30 1*2 480*2 30 2280*1150*2060
CX2-1 ≤10 20-50 2 520 30 1600*1600*2780
CX2-2 ≤10 20-50 2*2 520*2 60 3080*1600*2780
CX4-1 ≤10 40-80 4 770 55 1900*1760*3470
CX4-2 ≤10 40-80 4*2 770*2 110 3720*1760*3470

Notice: There is a chance that LDHB may make changes on above-mentioned information. Product pictures and parameters about models, data, performances and specifications on this website are for reference only.
