Sand Washing Machine

Max Feeding Size: 10mm

Production Capacity: 0-250t/h

Final Water Content: as low as 12%-15%

Applications: crushed sand, river sand, lake sand or sea sand washing, screening, recycling and dewatering.

You can also send us a message and we will reply to you within 24 hours.
Product Details
Product Details

Sand washing & recycling machine is a combination of washing sand and dewatering and recovery of fine sand. The machine skillfully connects the fine sand recycling machine with the sand washer, with a reasonable structure, small floor space and lower investment.

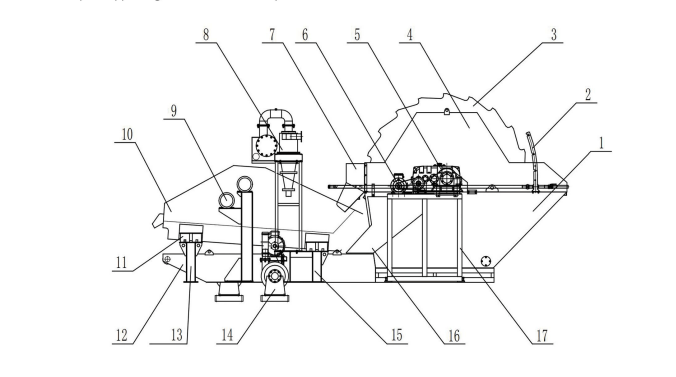

Organization chart:


  • 1.Water tank
  • 2.Water sprayer
  • 3.Impeller
  • 4.Protect plate
  • 5.Reducer
  • 6.Motor
  • 7.Discharge hopper
  • 8.Cyclone
  • 9.Motor
  • 10.Dewatering screen
  • 11.Rubber spring
  • 12.Tank
  • 13.Discharge part support leg
  • 14.Slurry pump
  • 15.Feed part support leg
  • 16.Overflow part
  • 17.Reducer base

Product advantages

1.Integrated washing and recycling

Combined with advantages of sand washer and sand recycling system, it has the functions of washing,fine sand dehydration and recovery, the final sand is much cleaner than that of traditional washers,with better quality and price.

2.High efficiency and low power consumption

This machine has higher working efficiency and lower energy consumption,and its biggest advantage is energy saving and environmental protection. Reasonable structure,small floor space, easy installation, lower investment cost than two equipment.

Model Feeding Size (mm) Capacity (t/h) Impeller Size (mm) Hydrocyclone (mm) Screen Panel (mm) Power (kw) Overall Size (mm)
DL40 ≤10 20-40 1800X800 250X2 1200X2400 29.4 5800X5000X1950
DL60 ≤10 30-60 2500X1200 300X2 1500X3000 40 5800X5560X2750
DL80 ≤10 40-80 3000X1600 300X2 1800X4200 46.5 7950X6200X3700
DL100 ≤10 60-120 3000X1600 350X2 1800X4200 57.5 7950X6200X3700
DL150 ≤10 100-150 3600X2000 350X2 2400X4200 66.5 8500X6800X3700
DL200 ≤10 120-200 3600X2400 350X4 3000X4800 115 7950X7400X4100
DL250 ≤10 160-250 4200X3000 300X6 3600X6000 149 8580X8020X4860

Notice: There is a chance that LDHB may make changes on above-mentioned information. Product pictures and parameters about models, data, performances and specifications on this website are for reference only.
