Fines Recovery Units

Max Feeding Size: 10mm

Production Capacity: 0-250t/h

Recycling Rate:>95%

Applications: sand and gravel yard, mining, building materials, transportation, chemical industry, water conservancy and hydropower, concrete mixing station, metallurgy, etc.

You can also send us a message and we will reply to you within 24 hours.
Product Details
Product Details

After cleaning, the coarse sand directly are sent to the screen surface and then forms a filter layer throughhigh frequency vibration, so as to realize the dehydration, Waste water enters into water tank and ispumped to the cyclone to seperate fine sand and water, Fine sand are discharged to screen surface again, realizing the dehydration and recovery.

It has the functions of cleaning, dehydration and recovery, so that the finished products have better quality. low energy consumption, corvenient installation and maintenance, and low operation cost.

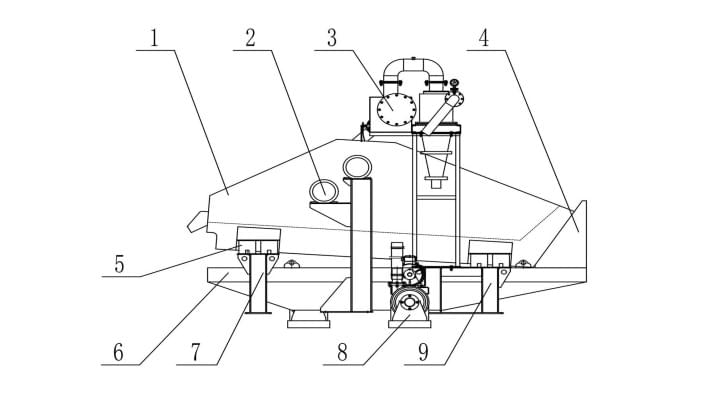

Organization chart:


  • 1.Dewatering screen
  • 2.Motor
  • 3.Cyclone
  • 4.Protect shield
  • 5. Rubber spring
  • 6.Water tank
  • 7.Discharge part support leg
  • 8.Slurry pump
  • 9 Feed part support leg
Model Feeding Size (mm) Capacity (t/h) Screen Panel (mm) Hydrocyclone (mm) Power (kw) Overall Size (mm)
LZ1224D-55 ≤10 20-40 1200X2400 250X2 26.4 2760X4850X2780
LZ1530D-65 ≤10 30-60 1500X3000 300X2 36 3300X5250X3000
LZ1842D-75 ≤10 40-80 1800X4200 350X2 48 4600X5560X3520
LZ1842J-75 ≤10 60-100 1800X4200 350X2 52 4600X5560X3520
LZ2442J-120 ≤10 100-150 2400X4200 300X4 82 4600X6250X3600
LZ3048J-140 ≤10 120-200 3000X4800 350X4 104 5400X7000X4200
LZ3660J-180 ≤10 150-250 3600X6000 300X6 134 6600X7000X4800

Notice: There is a chance that LDHB may make changes on above-mentioned information. Product pictures and parameters about models, data, performances and specifications on this website are for reference only.
