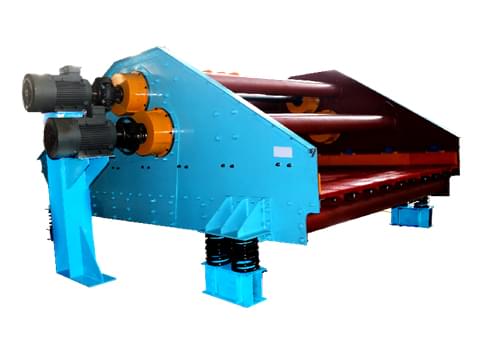

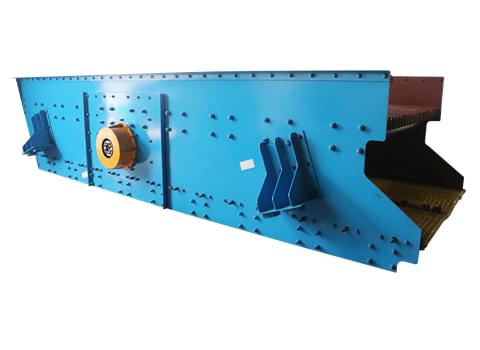

Tailings Dewatering Screen

Max Feeding Size: 10mm

Production Capacity: 0-250t/h

Final Water Content: as low as 12%-15%

Applications: sand, gravel, aggregate, frac sand, mineral, ore, coal, tailing, clay, etc.

You can also send us a message and we will reply to you within 24 hours.
Product Details
Product Details

ZSD dewatering screen is suitable for smaller size materials, compared with the ordinary linear vibrating screen, this screen has large capacity, great dehydration effect, low moisture content, and other advantages. It is widely used in different industries.

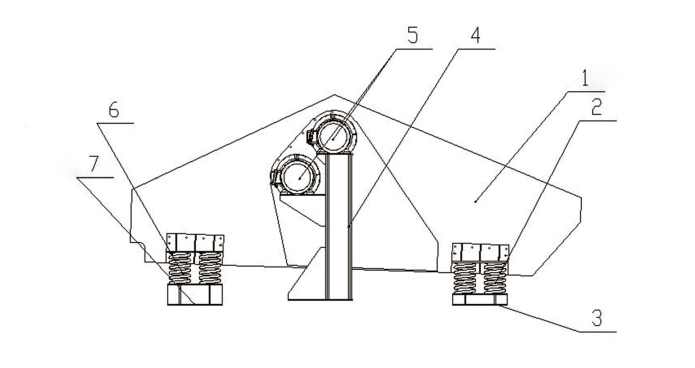

Organization chart:


  • 1.Screen frame
  • 2.Feed end spring
  • 3.Feed end spring base
  • 4. Motor support
  • 5.Motor
  • 6.Discharge port spring
  • 7.Discharge port spring base

Product advantages


1.Large capacity

High working frequency, high vibration intensity, low moisture, better performance.

2.Simple structure

The power source adopts vibration motor, no bearing, coupling and other vulnerable parts, simple structure, easy installation and maintenance, low maintenance cost, can work for 24 hours continuously.

Model Feeding Size (mm) Capacity (t/h) Screen Panel (mm) Screen Area (m²) Power (kw) Overall Size (mm)
ZSD1530 ≤10 30-60 1500*3000 4.5 3.0*2 3080*2500*1600
ZSD1842 ≤10 60-100 1800*4200 7.56 7.5*2 4370*3080*2000
ZSD1848 ≤10 60-100 1800*4800 8.64 7.5*2 4790*3065*1960
ZSD2442 ≤10 80-150 2400*4200 10.08 11*2 4400*3740*1930
ZSD2448 ≤10 80-150 2400*4800 11.52 11*2 5000*3740*1980
ZSD3048 ≤10 120-200 3000*4800 14.4 15*2 4960*4520*2220
ZSD3060 ≤10 120-200 3000*6000 18 18.5*2 6160*4520*2220
ZSD3660 ≤10 150-250 3600*6000 21.6 22*2 6160*5120*2280

Notice: There is a chance that LDHB may make changes on above-mentioned information. Product pictures and parameters about models, data, performances and specifications on this website are for reference only.
