Spiral Sand Washing and Recycling Machine

Max Feeding Size: 10mm

Production Capacity: 0-250t/h

Materials natural sand, machine made sand, tailings sand

Applications: minerals, building materials, chemical industry,quartz sand, aggregates, coal, ore, tailings, etc.

You can also send us a message and we will reply to you within 24 hours.
Product Details
Product Details

The equipment has a reasonable integrated structure, adopts linear vibrating screen and spiral sand washing system realizes material cleaning, dehydration, recovery and other functions, it is easy to produce and process,and have short production cycle, small floor area.

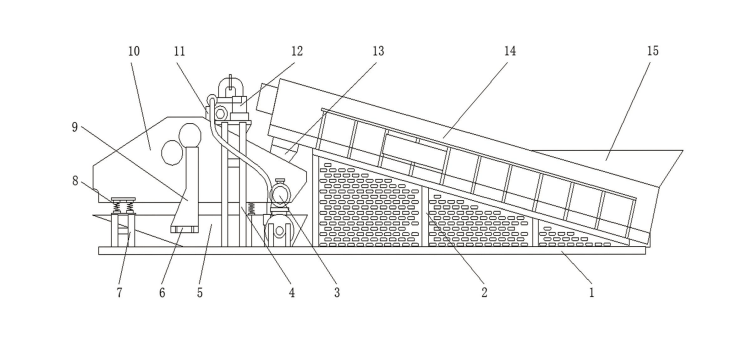

Organization chart:


  • 1. Base plate
  • 2. Support pad
  • 3. Slurry pump
  • 4. Fixed frame
  • 5. Water tank
  • 6. Vertical chute
  • 7. Water tank fixing frame
  • 8. Flastic damper
  • 9. Sliding frame
  • 10. Dewatering screen
  • 11. Recovery water tank
  • 12. Cydone
  • 13. Discharge port
  • 14. Double spiral sand washer
  • 15. Cleaning box

Product advantages

1.Sand washing and recovery

The whole machine has the functions of cleaning, dehydration, recovery and so on.integrated structure, short production cycle, small floor area and big capacity.

2.Energy saving and environmental protection

Reasonable waterway design and dark flow structure have good cleaning effect, which not only can meet the requirements of civilized production on site, but also can effectively reduce water consumption, save energy and reduce consumption, and maximize the utilization rate of resources

Model Feeding Size (mm) Capacity (t/h) Spiral Diameter (mm) Hydrocyclone (mm) Screen Panel(mm) Power (kw) Overall Size (mm)
LY40 ≤10 20-40 760 250X2 1200X2400 33.9 10880X5240X3720
LY60 ≤10 30-60 920 300X2 1500X3000 47 11490X5560X3960
LY80 ≤10 40-80 1120 300X2 1800X4200 59.5 12830X5860X4250
2LY100 ≤10 80-120 920X2 350X2 2400X4200 74 12630X6450X3860
2LY150 ≤10 100-150 1120X2 300X4 2400X4200 119 12630X6450X4150
2LY200 ≤10 100-160 1500X2 350X4 3000X4800 148 13560X7860X4300
2LY250 ≤10 160-250 1500X2 300X6 3600X6000 178 14760X7920X4900

Notice: There is a chance that LDHB may make changes on above-mentioned information. Product pictures and parameters about models, data, performances and specifications on this website are for reference only.
