Modular Wash Plant

Max Feeding Size: 10mm

Production Capacity: 0-250t/h

Final Mud Content: <2%

Applications: sand and gravel plants, construction sites, hydropower dams, glass manufacturing, oil well development and other industries.

You can also send us a message and we will reply to you within 24 hours.
Product Details
Product Details

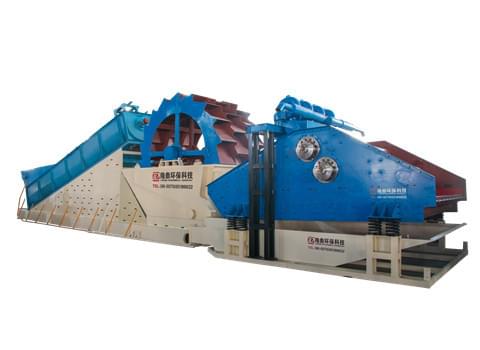

This machine combines wheel sand washing machine, spiral sand washing machine, dewatering screen, separator andother components into one, so that the equipment has stronger material cleaning and recovery ability.

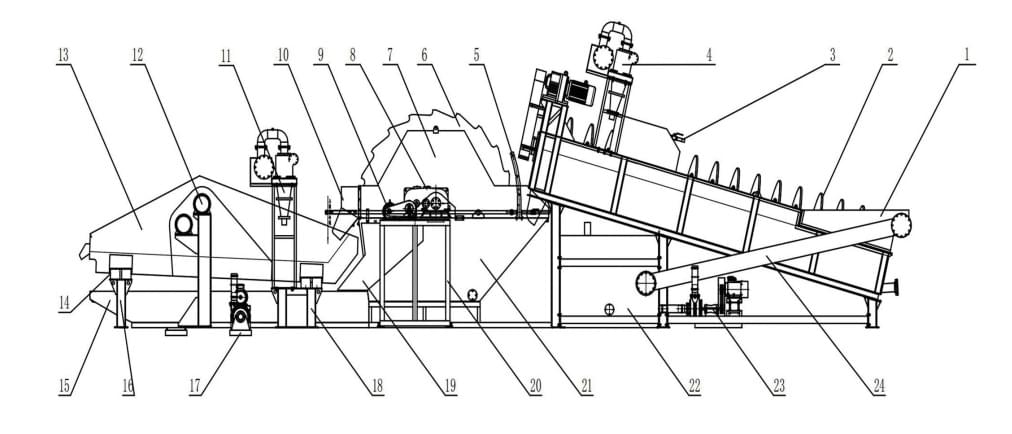

Organization chart:


  • 1.Screw washer tai weir
  • 2.Screw
  • 3.Spiral washer spray system
  • 4.Cyclone (Once recycling)
  • 5.Wheel washer spray system
  • 6.Wheel
  • 7.Wheel washer guard plate
  • 8 Wheel washer reducer
  • 9.Wheel washer motor
  • 10.Wheel washer discharge port
  • 11.Cyclone (secondary recydling)
  • 12.Screen motor support
  • 13.Dewatering screen
  • 14Rubber sprinc
  • 15.Water tank under screen
  • 16.Water tank under screen
  • 17.Slurry pump
  • 18.Feed end spring lec
  • 19.Overflow launder
  • 20.Reducer mounting bracket
  • 21.Wheel washer water tank
  • 22 Auxiiary water tank
  • 23.Slurry pump
  • 24.Overlow pipe

Product advantages

1.Material ceaning

The front end adopts spiral to remove most of the mud and the cleaning effect is great The middle end adopts wheel washing screen to remove most sewage and then toreduce the moisture content of sand.

2.Dehydration and recycling

The sand with lower mud and water enter the rear end dewatering screen for dehydration,which further reduces the water content and mud content. Hydrocyclones will recycle finesand in waste water, so to improve final sand quality.

Model Feeding Size (mm) Capacity (t/h) Spiral Diameter (mm) Impeller Diameter (mm) Screen Panel (mm) Hydrocyclone(mm) Power (kw) Overall Size (mm)
DS40 ≤10 20-40 760 1800X800 1200X2400 300X2 44.9 11900X5250X3880
DS60 ≤10 30-60 920 2500X1200 1500X3000 300X2 51 14550X5560X4150
DS80 ≤10 40-80 1120 3000X1600 1800X4200 300X4 95 16250X6200X3700
DS100 ≤10 60-100 920X2 3000X1600 1800X4200 300X4 102.5 16250X6200X3700
DS150 ≤10 100-150 1120X2 3600X2000 2400X4200 350X4 140.5 17450X6800X3700
DS200 ≤10 120-200 1500X2 3600X2400 3000X4800 350X6 196 18000X7400X4600
DS250 ≤10 160-250 1500X2 4200X3000 3600X6000 350X6 214 18580X8000X5200

Notice: There is a chance that LDHB may make changes on above-mentioned information. Product pictures and parameters about models, data, performances and specifications on this website are for reference only.
