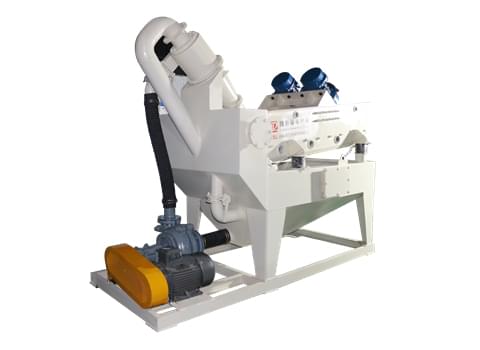

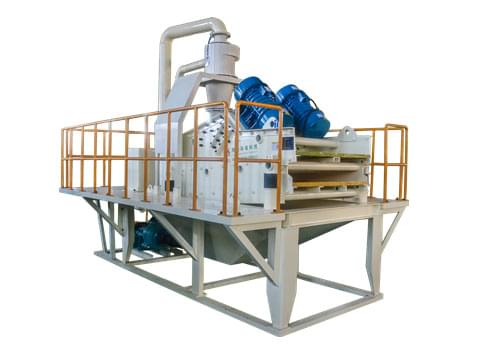

Sand Recycling Machine

Max Feeding Size: 10mm

Production Capacity: 0-300t/h

Recycling Rate: >95%

Applications: sand and gravel plant, mining, building materials, transportation, metallurgy, etc.

You can also send us a message and we will reply to you within 24 hours.
Product Details
Product Details

The pump transports waste water to the separation system, and the concentrated fine sand is discharged bythe outlet and then dewatered with the coarse sand on the screen, to achieve the recovery and utilizationof fine sand.

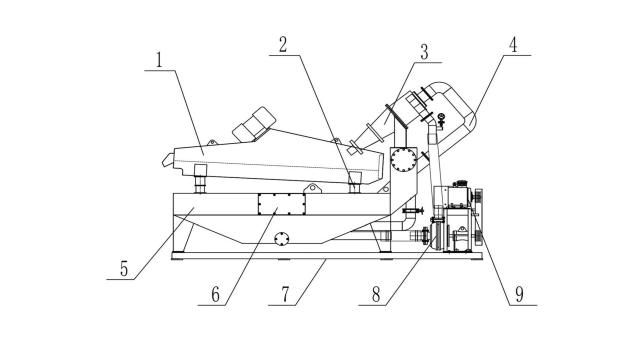

Organization chart:


  • 1.Dewatering screen
  • 2.Cyclone Motor
  • 3.Rubber spring
  • 4.Overflow pipe
  • 5.Water tank
  • 6.Overflow opening
  • 7.Base frame
  • 8.Slurry pump
  • 9.Motor

Product advantages

1.Long service life

The separator feeding pump is horizontal and centrifugal, and all the parts inside the pump adopt high chromium alloy material, good wear resistance and long service life.

2.Integrated design

It adopts high efficiency vibration motor. The motor and eccentric block are integrated,so operation and maintenance are more convenient and fast.

Model Feeding Size (mm) Capacity (t/h) Screen Panel (mm) Hydrocyclone (mm) Power (kw) Overall Size (mm)
LZ250 ≤10 20-50 900*1800 250 12.5 3100*1300*2700
LZ300 ≤10 40-80 900*1800 300 16.5 3100*1300*2700
LZ350 ≤10 60-100 900*1800 350 20 3100*1300*2700
LZ550 ≤10 40-100 1200*2400 250*2 26.4 3600*1600*2800
LZ650 ≤10 80-160 1200*2400 300*2 34.4 3600*1600*2800
LZ750 ≤10 120-200 1200*2400 350*2 41.4 3600*1600*2800
LZ900 ≤10 120-250 1500*3000 300*3 51 4600*1900*2600
LZ1050 ≤10 150-300 1500*3000 350*3 61.5 4600*1900*2600

Notice: There is a chance that LDHB may make changes on above-mentioned information. Product pictures and parameters about models, data, performances and specifications on this website are for reference only.
