Portable Wash Plant

Max Feeding Size: 10mm

Production Capacity: 0-120t/h

Functions: screening, washing, recovery and dehydration.

Applications: sand mining field, mine, site, highway, road and bridge construction, concrete mixing station, water conservancy and hydropower, chemical industry and other industries.

You can also send us a message and we will reply to you within 24 hours.
Product Details
Product Details

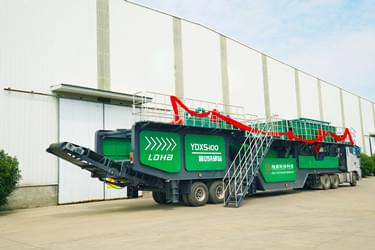

The whole equipment is composed of a mobile trailer chassis, screen, washer, dehydration recovery device,pump and motor components,conveyor belt, electric control and hydraulic system, etc.

Customized service provides more flexible process and equipment configuration according to different material types and product requirements, meets user process requirements, has strong adaptability, can operate independently, and can also work in groups with crushing equipment and back-end tail water treatment equipment.

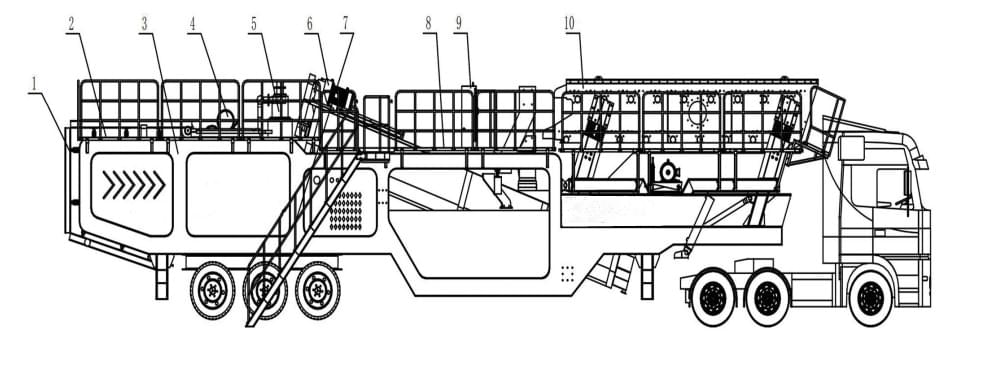

Organization chart:


  • 1. Conveying system
  • 2.Platform
  • 3. Truck frame
  • 4. Dewatering screen
  • 5. Cyclone unit
  • 6. Spiral sand washer
  • 7.Ladder
  • 8. Control cabinet frame
  • 9. Control cabinet
  • 10. Vibrating screen

Product advantages

1.Simple structure

Highly integrated and automated design eliminates make site layout, foundation installation and other tasks easy.

2.The whole

The whole machine is flexible, convenient, efficient, environmental protection with intelligent screening, washing, recycling, dehydration machine.

Model Feeding Size (mm) Capacity (t/h) Screen Mesh(mm) Spiral Diameter (mm) Screen Panel (mm) Hydrocyclone (mm) Power (kw) Overall Size (mm)
YD-50 ≤10 30-50 1500*4800 920 1200*2400 250*2 63 17500*3000*4800
YD-80 ≤10 50-80 1800*6000 1120 1500*3000 300*2 81.5 17500*3000*4800
YD-100 ≤10 80-120 2100*6000 920*2 1800*4200 350*2 126 17500*3000*4800

Notice: There is a chance that LDHB may make changes on above-mentioned information. Product pictures and parameters about models, data, performances and specifications on this website are for reference only.
