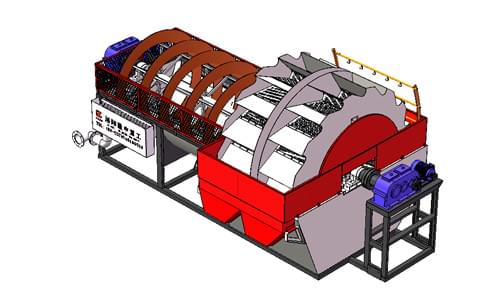

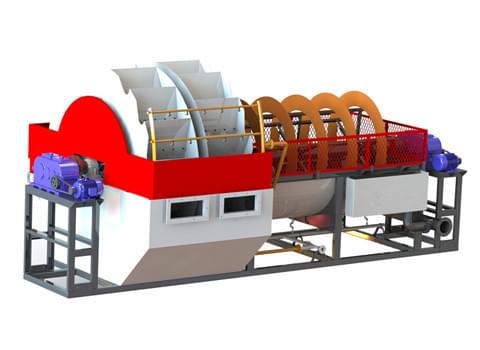

Bucket Wheel Sand Washing Systems

Max Feeding Size: 10mm

Production Capacity: 0-90t/h

Bucket Wheel Capacity Range: 25TPH-250TPH

Applications: silica sand, river sand, frac sand, waste fines and gravels.

You can also send us a message and we will reply to you within 24 hours.
Product Details
Product Details

The equipment is improved based on the traditional wheel sand washer and fine sand recoverymachine. It use natural precipitation of fine sand and spiral blade recovery device to achieve an ideal fine sand recovery effect, and at the same time, it is more energy saving compared with the traditional cyclone recovery method.

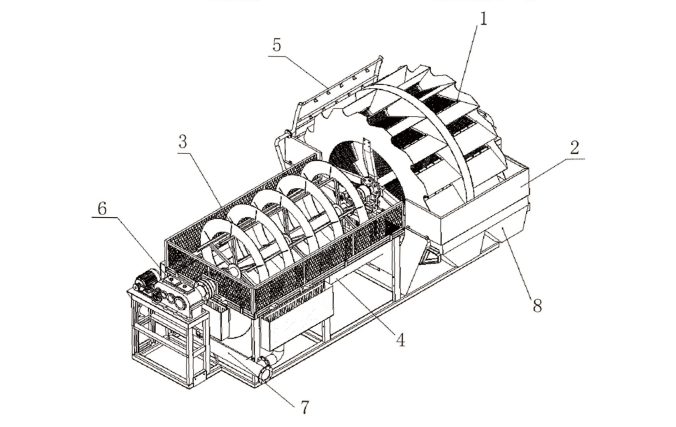

Organization chart:


  • 1. New Wheel Sand Washing Device
  • 2. Water tank
  • 3. Spiral blade recovery unit
  • 4. Fine sand recoverytank
  • 5 Spray device
  • 6. Reducer
  • 7. Backwashing line
  • 8. Circuit
Model Feeding Size (mm) Capacity (t/h) Spiral Size (mm) Impeller Size (mm) Power (kw) Overall Size (mm)
LXHS-30 ≤10 30-40 1500*3500 2500*1200 7.5 6800*2700*3400
LXHS-50 ≤10 40-60 1800*3500 3000*1600 11 7280*3160*3800
LXHS-80 ≤10 60-90 2200*3500 3600*2000 15 7900*3600*4500

Notice: There is a chance that LDHB may make changes on above-mentioned information. Product pictures and parameters about models, data, performances and specifications on this website are for reference only.
