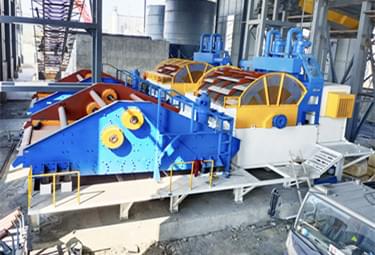

GX High-efficient Scrubbing and Washing Machine

Production Capacity: 0-250t/h

Material Concentration: 70%~80%

Materials: glass sand, fracturing sand, ore, clay, iron ore

Applications: sand and gravel fields, mines, building materials, chemicals, water conservancy and hydropower, concrete mixing plants, etc

You can also send us a message and we will reply to you within 24 hours.
Product Details
Product Details

The mixed material are sent to the scrubbing machine for full scrubbing firstly,and then go to wheel washer, for futher cleaning,to achieve the effect of mud-sand separation.

The material from wheel bucket enters the coarse sand dewatering area of dewatering screen for dehydration, and the overflowing waste water is concentratedby hydrocyclones, and then discharged into the wheel washer,through the bottom flow port for cleaning again.

The mixture material under dewatering screen will be concentrated bysecond set of hydrocyclones and discharged into the fine sand dewatering area of the dewatering screen through the bottom flow port. Therefore,to achieve sand washing efficiently.

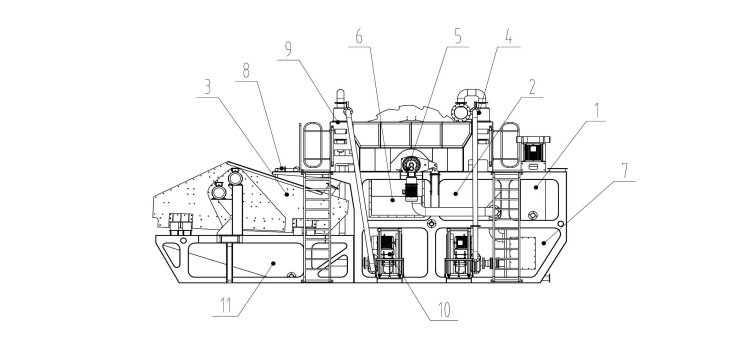

Organization chart:


  • 1. Dewatering screen
  • 2. Platform
  • 3. Motol
  • 4. Water sprayer
  • 5. Second recycling system
  • 6. Discharge hopper
  • 7. Impeller
  • 8. Protect plate
  • 9. Wheel drive assembly
  • 10. First recycling system
  • 11. Scrubbing part
  • 12. Slurry pump
Model Capacity (t/h) Attrition Scrubber Impeller Size (mm) Screen Panel (mm) Power (kw) Weight (kg) Overall Size (mm)
GX50 30-60 CX1.5 2512 1530 42.5 9860 8320X3200X3560
GX100 60-100 CX3 2516 1842 68.5 13450 9540X3520X3860
GX150 100-150 CX2-2 3020 2442 96.5 18780 8850X4250X4660
GX200 150-200 CX2.5-2 3024 3048 123 23560 9860X4800X5200
GX250 200-250 CX3-2 3030 3660 163 28800 11360X5820X5400

Notice: There is a chance that LDHB may make changes on above-mentioned information. Product pictures and parameters about models, data, performances and specifications on this website are for reference only.
