Feed Size: 50-625 mesh
Capacity: 1-5 t/h
Application Materials: battery materials, silicon powder, food industry, pharmaceutical industry, chemical industry, metal, metallurgical mining, non-metallic industry, other industries, etc

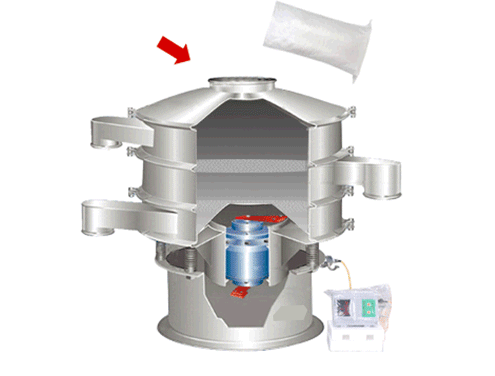

Ultrasonic vibrating screen is a derivative product of the rotary vibrating screen, which combines an ultrasonic controller with ordinary rotary vibrating screen. While the materials on the screen undergo low-frequency rotary vibration, ultrasonic vibration is superimposed, which not only prevents sieve mesh blockage but also enhances the output and quality of the screening materials.
Ultrasonic vibrating screen resolves screening challenges associated with materials characterized by strong adsorption, a tendency to clump, high stickiness, high electrostatic charge, high density, and ultrafine particles. It is particularly well-suited for screening high-quality, fine powders.
Ultrasonic vibrating screen converts electrical energy from 220V, 50Hz or 110V, 60Hz into high-frequency electrical energy at 18KHz, which is then input into an ultrasonic transducer and transformed into mechanical vibration at 18KHz, with a vibration frequency reaching up to 36,000 times per second.
Fine powdery materials form a micro-suspension state on the sieve surface, enabling them to pass through the screen more rapidly without generating static electricity or adhering to the screen. This results in a screening accuracy improvement of over 80% and a production increase of 2 to 5 times.
1. The ultrasonic frequency prevents screen mesh blockage, enabling separation precision as low as 20μm (635 mesh).
2. Screening accuracy can be improved by over 80%, with production increasing by 2 to 5 times.
3. The power supply can automatically adjust between 18K and 40K, allowing for conversion from low to high frequency based on the material’s specific gravity.
4. The dedicated ultrasonic screen frame structure ensures no pollution, no dead zones, and uniform force distribution.
5. Ultrasonic vibrating screen eliminates the need for a bouncing ball cleaning device, transforming conventional screening methods that previously caused pollution and wear to the powder.
| Model | Screening Diameter(mm) | Screening Area(m²) | Sieve Hole (mesh) | Layer(s) | Vibrating Motor(kw) | Ordinary Motor(kw) |
| UXZ-600 | φ560 | 0.25 | 2-500 | 1-5 | 0.25 | 0.75 |
| UXZ-800 | φ760 | 0.45 | 0.55 | 1.1 | ||
| UXZ-1000 | φ930 | 0.68 | 1.1 | 1.5 | ||
| UXZ-1200 | φ1130 | 1 | 1.1 | 1.5 | ||
| UXZ-1500 | φ1430 | 1.61 | 1.5 | 2.2 | ||
| UXZ-2000 | φ1920 | 2.9 | 2.2 | 3 |
Notice: There is a chance that LDHB may make changes to above-mentioned information. Please feel free to contact us for the latest product information.
