Feeding Size: 2–0.037 mm
Capacity: 0.03-2.5t/h
Application: Mainly used for the sorting of fine-grained materials such as tin, tungsten, gold and silver, lead and zinc, as well as coal. Shaking table can also be used for the recovery of precious metals from waste batteries.

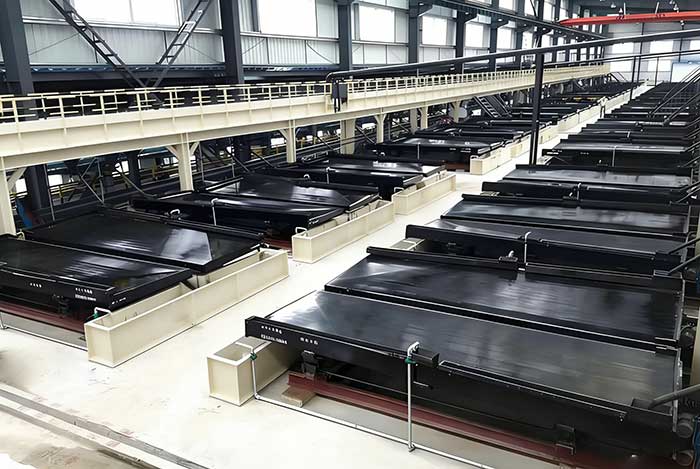

Mineral Shaking Table is a gravity separation equipment widely used for the separation of fine-grained materials. LY Series Shaking Table is a high-efficiency gravity separation device specially designed for ore washability research and small-scale mineral processing plant production. Some are also used in the concentrating sections of large-scale mineral processing plants for placer gold, tin ore and tungsten ore (to improve concentrate grade).
LY Series Shaking Table is suitable for the separation of fine and ultra-fine ores and coal, including rare metals, ferrous metals, non-ferrous metals, precious metals, and others. It can be used not only as an independent beneficiation operation, but also matched with jigging machines, spiral chutes, and centrifugal concentrators to form a complete gravity separation process flow.

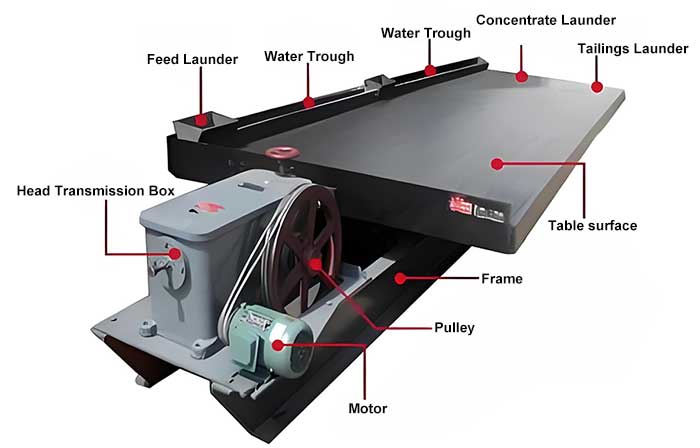

A mineral shaking table mainly consists of 7 parts: head transmission box, table surface, frame, slope adjuster, feed launder, water trough, and motor.
When working, ore slurry flows into the upper part of the shaking table surface from the feed launder, and is loosened and stratified under the combined action of water flow and table vibration. In this process, transverse wash water flows in a thin layer along the inclined table surface, creating strong eddies that facilitate further loosening of the slurry.
After stratification, light minerals, strongly washed by water flow, are discharged transversely along the slope as tailings. Heavy minerals, subject to greater friction on the table surface, move longitudinally to the concentrate zone and are discharged. Medium-density minerals form a middlings zone. In this way, concentrate, middlings, and tailings can be produced in a single pass.
1. Wide suitable for precise separation of fine-grained materials (e.g., cassiterite, tungsten ore) with a high enrichment ratio.
2. Can effectively process coarse particles above 3 mm and fine particles below 0.4 mm, with typical processing for materials under 1 mm.
3. Stroke (8–30 mm), frequency (210–460 rpm), and transverse slope (0–10°) are infinitely adjustable.
4. Wide adaptability to feed concentration (10%–30%), easy to operate and control.
Q1: Why Are Particle Zones On My Shaking Table Indistinct?
Blurry particle separation on the shaking table is mainly caused by fluctuations in feed concentration, which will disturb the bed layer, and mixed particle sizes will also lead to unclear concentrate bands.
It is recommended to properly increase the wash water flow to ensure even coverage of the entire table surface, install a buffer stabilizer box to stabilize feeding, and complete pre-classification to ensure uniform feed particle size for stable separation.
Q2: What Are The Applicable Scenarios Of the LY Series Shaking Table?
According to bed size and processing capacity, LY series shaking tables can be clearly divided into two categories: those dedicated for laboratory / small-scale mineral processing, and those for industrial use in large-scale mineral processing plants.
| Model | Application |
|---|---|
| LY1100 | Laboratory testing, small-scale gold mining, mineral sample analysis |
| LY2100 | Small mineral processing plants (daily capacity < 50 tons), pilot tests |
| LY3000 | Concentrating & scavenging sections in large-scale mines, industrial production lines |
| LY4500 | Roughing section in large mines, high-capacity gravity separation plants |
| Model | Area (㎡) | Feeding Size (mm) | Feeding Density (%) | Capacity (t/h) | Water Volume (m³/t) | Overall Dimensions (mm) | Weight (kg) | ||||
| Coarse Sand | Fine Sand | Mineral Mud | Coarse Sand | Fine Sand | Mineral Mud | ||||||
| LY1100 | 0.51 | 2-0.5 | 0.5-0.074 | 0.074-0.037 | 10-30 | 0.1-0.2 | 0.05-0.1 | 0.03-0.05 | 0.2-0.5 | 1530x500x660 | 350 |
| LY2100 | 2 | 2-0.5 | 0.5-0.074 | 0.074-0.037 | 10-30 | 0.4-0.8 | 0.2-0.5 | 0.1-0.4 | 1-2.5 | 3040x1050x760 | 750 |
| LY3000 | 4.08 | 2-0.5 | 0.5-0.074 | 0.074-0.037 | 10-30 | 0.6-1.5 | 0.3-0.8 | 0.2-0.6 | 1.5-3 | 4130x1680x860 | 1000 |
| LY4500 | 7.67 | 2-0.5 | 0.5-0.074 | 0.074-0.037 | 10-30 | 1-2.5 | 0.8-1.2 | 0.3-0.9 | 2-5 | 5630x1850x860 | 1100 |
Notice: There is a chance that LDHB may make changes to above-mentioned information. Please feel free to contact us for the latest product information.
