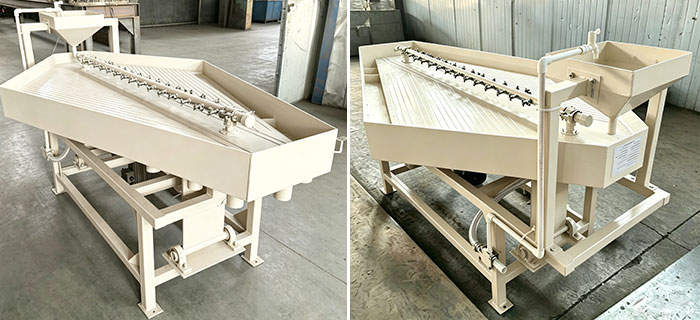

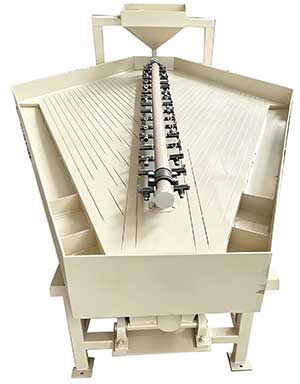

Gemini Shaking Table

Gemini shaking table is a small-sized and high-efficiency gravity separation equipment. It is mainly applied to the separation and purification of fine-grained minerals, especially suitable for fine sorting of placer gold, tungsten, tin and other minerals.

Gemini shaking table can be used alone or combined with jigs, spiral chutes and other equipment, and is widely used in small and medium mineral processing, laboratory sorting and field mobile mineral separation.

Working Principle

Gemini shaking table features an integrated double-deck structure sharing one set of transmission and water supply system. When working, the motor drives two decks to perform synchronous differential reciprocating motion with slow forward movement and fast return movement to generate directional thrust.

Mineral slurry is evenly fed onto the inclined deck. With the assistance of transverse water flow, high-density valuable minerals (placer gold and tin grains) settle to the bottom of the deck and move towards the concentrate outlet along with deck movement. Low-density gangue is washed away by water flow, ultimately realize efficient separation of valuable minerals from impurities and complete the sorting process.

Features

1. Gemini shaking table increases capacity by approximately 80% while occupying only half the floor space of two single shaking tables.

2. Fine-grain gold recovery rates are approximately 20% higher than those of standard 6S shaking tables.

3. Water consumption is approximately 40% lower than that of traditional shaking tables.

4. Pure gravity separation with no chemical agents; tailings can be reused.

FAQ

Q1:Difference between Gemini Shaking Table and 6S Shaking Table?

The biggest difference is the integrated double-deck structure. One machine has two sorting surfaces sharing the same motor and water supply system. It saves floor space, reduces power and water consumption, and performs better in fine-grained mineral separation. The 6S shaking table is single-deck, mainly applied to large-scale mineral processing.

Q2: Is the Gemini Shaking Table Easy To Install?

Very easy. Simply place it on flat ground and fix the anchor feet. Adjust four parameters: deck inclination, stroke, stroke frequency and water flow. It can run stably for long-term use after commissioning.

Q3: Can Gemini Shaking Table be Used For Field Gold Mining?

Absolutely yes. It is lightweight and easy to assemble and disassemble, which makes it the top choice for field gold separation and mobile mineral processing. Its circuit is well protected and the frame is anti-rust treated, ensuring stable operation outdoors and in humid conditions.

Notice: There is a chance that LDHB may make changes to above-mentioned information. Please feel free to contact us for the latest product information.
